Compatible with most commercially available refrigerants

New models for R290/R600 and R744 (CO2) refrigerants

Hermetic closing: no need to install solenoid valve

Reduces the risk of liquid returning to the compressor

Pilotable with Eliwell V800 driver

Optimises the injection of refrigerant into the evaporator, thus increasing its efficiency

Improves the control of overheating when operating conditions change

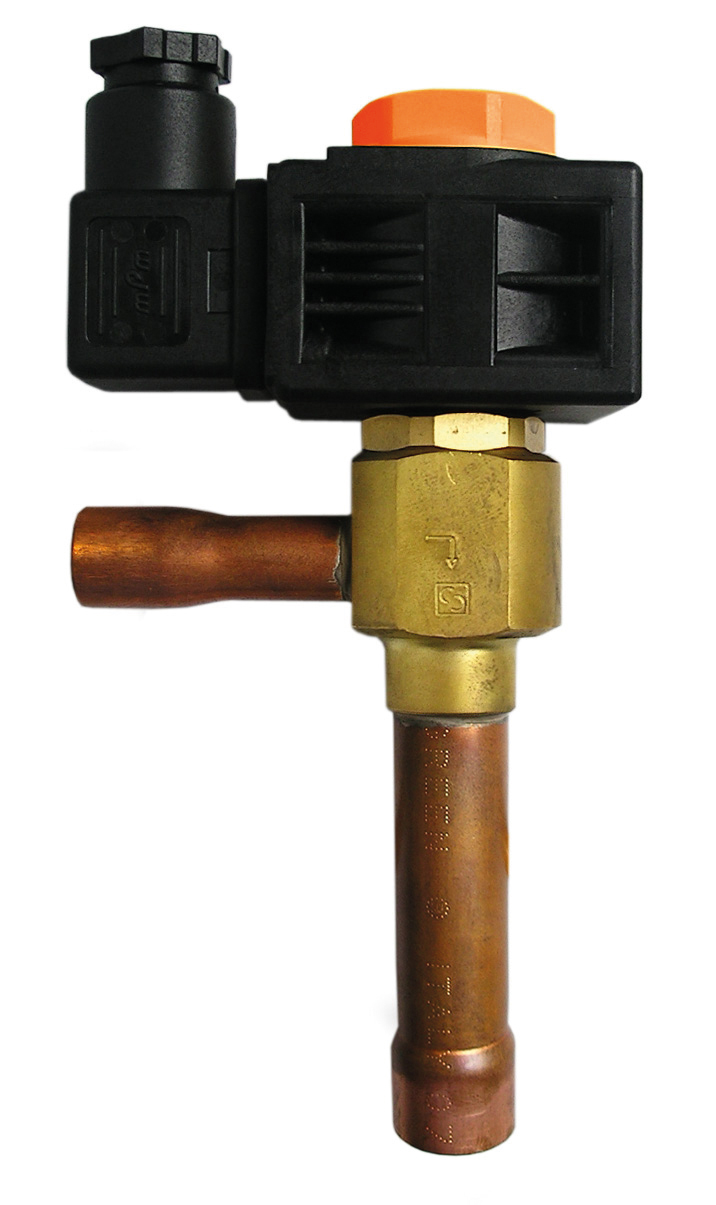

The PXV series solenoid expansion valve controls the flow of refrigerant to the evaporator by modulating the opening time of its obturator, allowing a wide power variation interval. This high-precision and reliable control of the refrigerant flow makes it possible to increase the efficiency of the entire system.
Nine interchangeable power rating orifices are available, from 1 kW to 15 kW (R404a) & 24 KW (R410A).
The PXV valve, linked to a coil, is piloted by a V800 Driver.

Technical

• Interchangeable orifices from 1 to 9
• Capacity up to 24 kW with R410
• 230 Vac and 24 Vac available

 It is typically used in refrigeration systems, especially the chiller cabinets utilised by retail purchasing consortiums, which use Group I liquid refrigerants such as R744/R290 and R600; Group II liquid refrigerants such as R22, R134a, R404A, R407C, R410A, R507 (as defined in Article 9, Points 2.1 and 2.2 of Directive 97/23/CE, with reference to Directive 67/548/CEE).
